Acoustic Solid

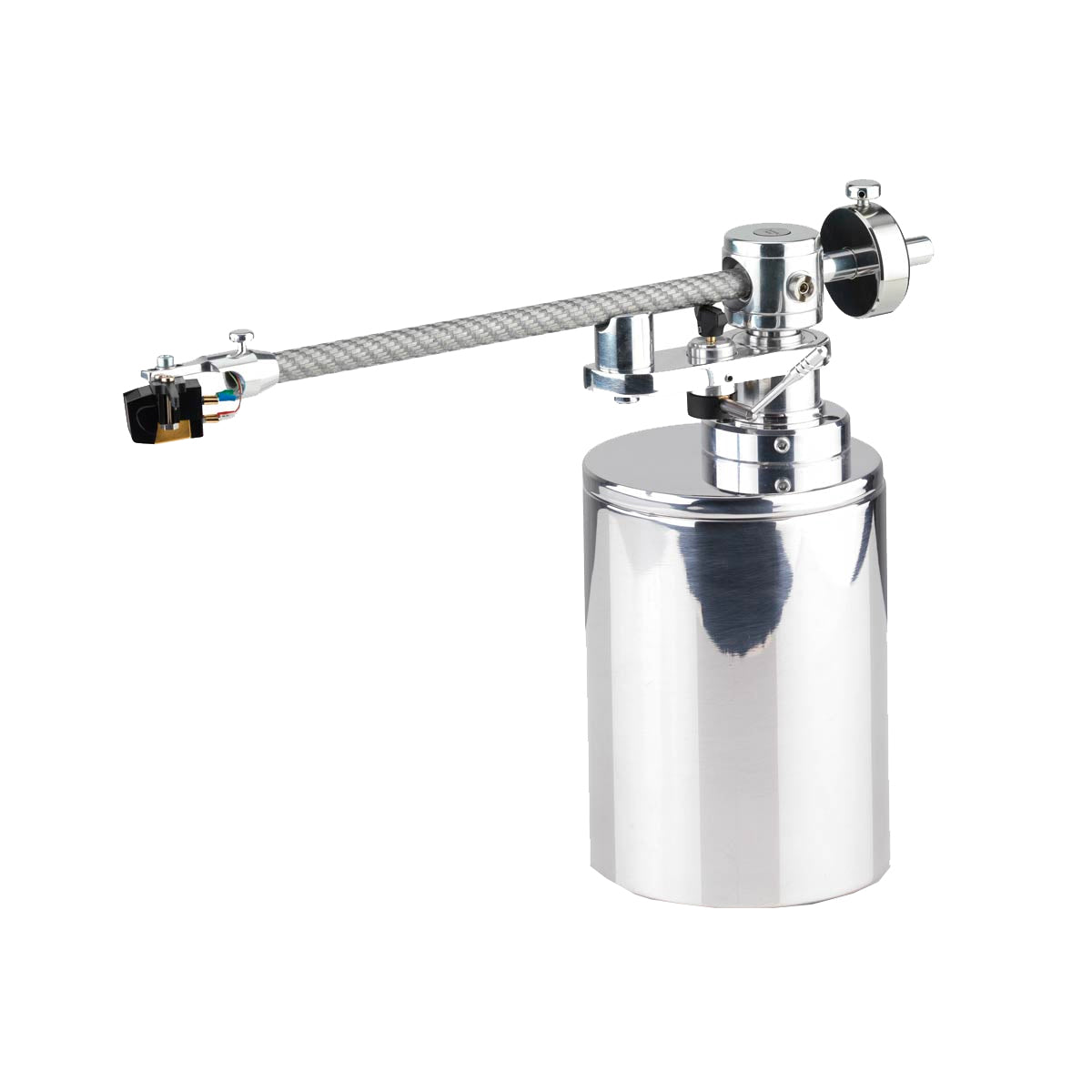

Acoustic Solid WTB230 Carbon Tonearm
Acoustic Solid WTB230 Carbon Tonearm
Regular price
£1,599.00
Regular price
Sale price
£1,599.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
| Construction principle |
Radial tonearm mounted horizontally and vertically with Swiss precision steel balls. Bearing play can be finely adjusted both horizontally and vertically. Side dampers carbon tube silver or black, also painted in color. Headshell and attachments aircraft aluminum polished to a high gloss by hand |
|---|---|
| Offset angle | 23.5° angular distance between the tonearm axis and the pickup system |
| Pickup weight | 5 – 20g |
| Fixing distance | 216 mm distance between platter axis and tonearm pivot point |
| Effective length | 233.75 mm distance between tonearm pivot point and cartridge tip |
| overhang | 17.75 mm distance between pickup tip and platter axis |
| Signal cable | Continuously assembled with RCA plugs without interruption, XLR possible on request |
| Tonearm mounting hole | 30mm |
| Weight arm | 325 g (without weight) |
| Balance weight | 115g |
| Complete weight | 440g |
| Weight | 0.44kg |
|---|---|
| Size | 47 × 37 × 19cm |
| material |
Carbon silver |
| scope of delivery |
1 tonearm WTB 230 9" |
