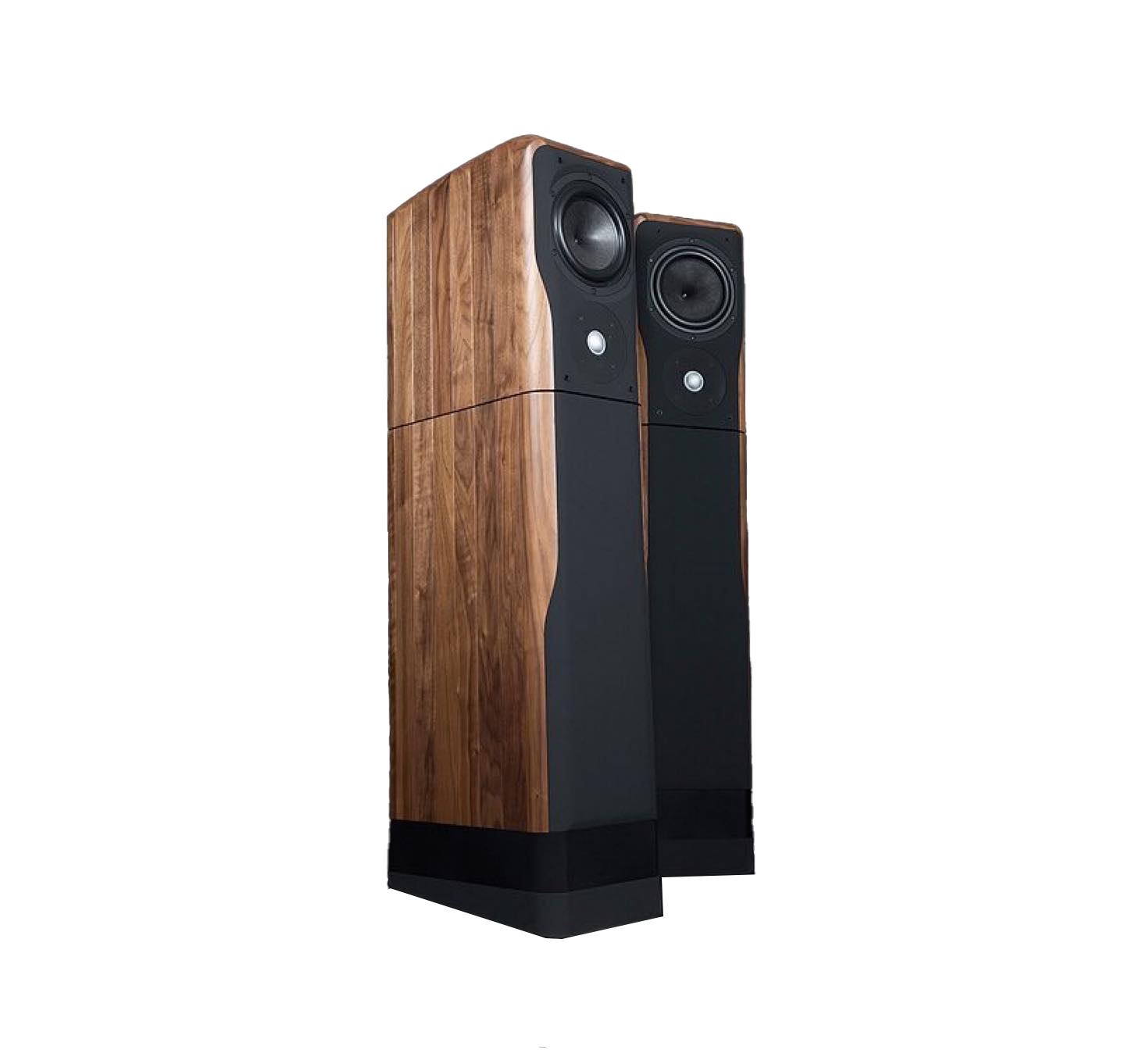

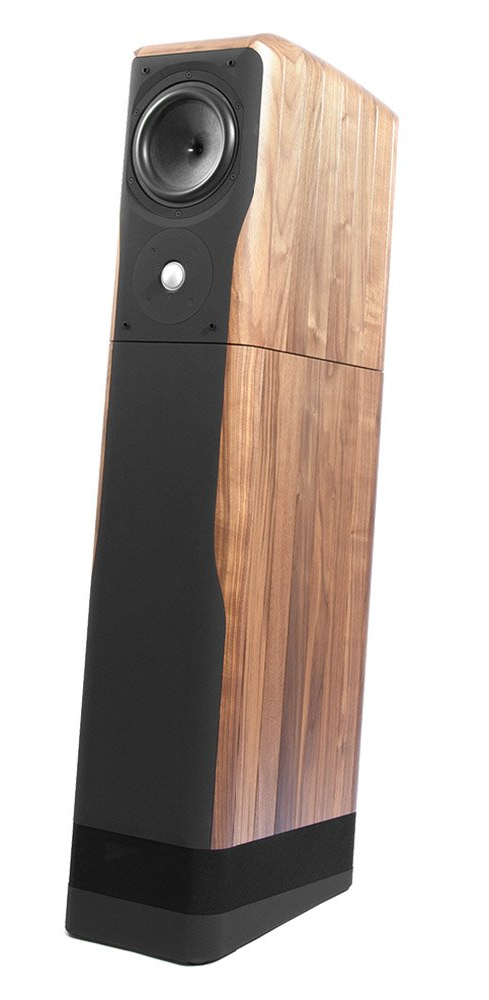

Chario Academy Sovran Floorstanding Speakers
Chario Academy Sovran Floorstanding Speakers
ACADEMY
SOVRAN
3 way Floorstanding / 2 Pieces
The first three-way loudspeaker system able to control energy diffusion at low frequencies, using Chario Loudspeakers prioprietary Doublet adiation principle. A decisive step ahead, laying the theoretical foundations for a different approach to sound issues in small environments. Natural wood changes shape depending on ambient temperature and relative humidity.
In other words, it adapts to climate conditions, generating outright tensions inside its fibres, which modify the macroscopic layout. This fact is well-known to master cabinet-makers, who actually adapt techniques when assembling the various parts of any prized solid wood cabinet. Firstly, the right board has to be chosen and cut using precise criteria to avoid creating isolated and incompatible sections.
Secondly, the right storage area and drying process are defined for the rough wood. Thirdly and lastly, the sections are assembled in a precise order, to allow the moisture-absorbing capacity of each element to develop over time, settling to achieve soundness, not breakage. That’s why the CNC machines only cut and mill. The rest is time-honoured craftsmanship…

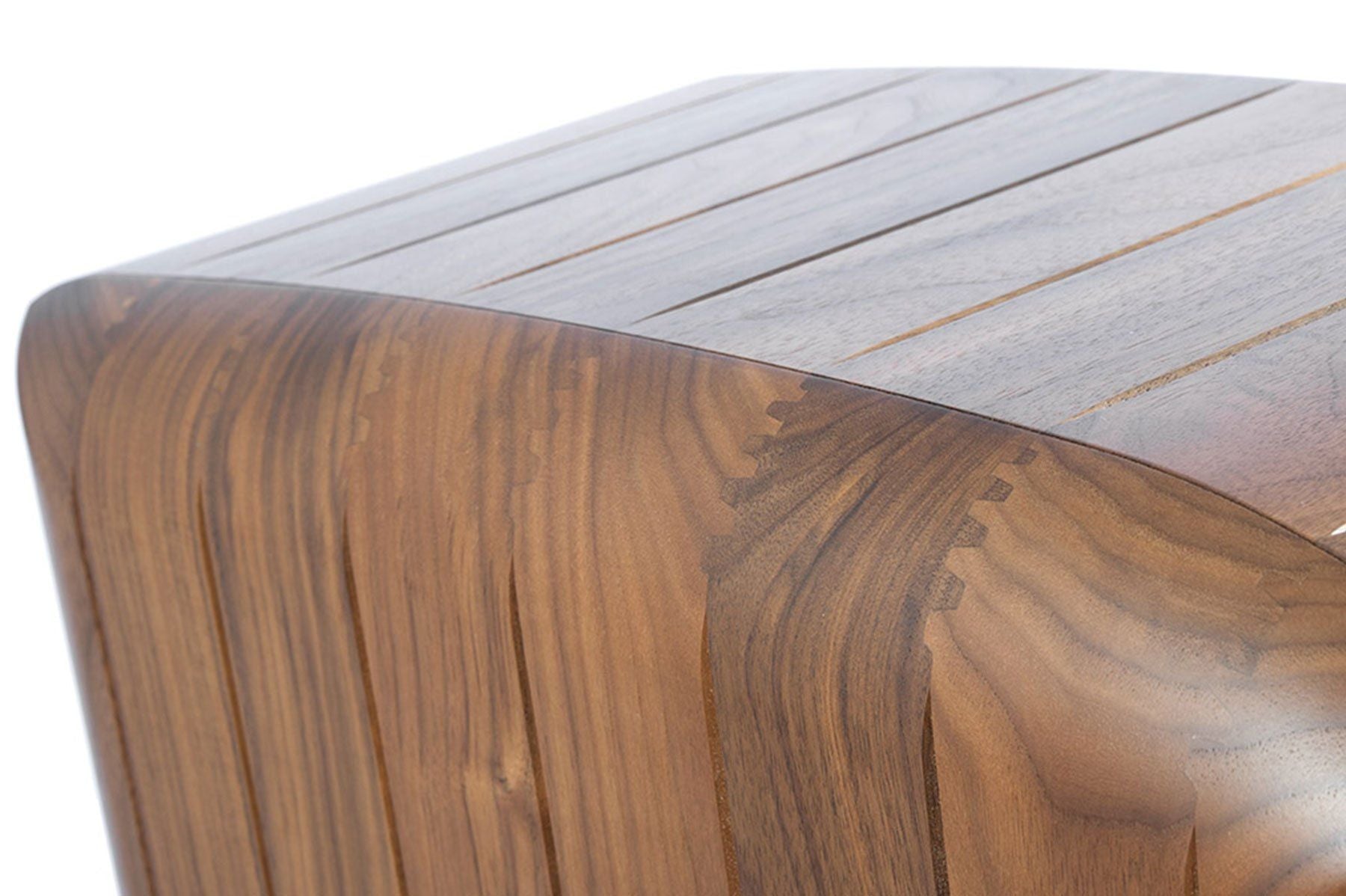

Handcrafted
Natural wood changes shape depending on ambient temperature and relative humidity. In other words, it adapts to climate conditions
Natural wood changes shape depending on ambient temperature and relative humidity.
In other words, it adapts to climate conditions, generating outright tensions inside its fibres, which modify the macroscopic layout.
This fact is well-known to master cabinet-makers, who actually adapt techniques when assembling the various parts of any prized solid wood cabinet. Firstly, the right board has to be chosen and cut using precise criteria to avoid creating isolated and incompatible sections. Secondly, the right storage area and drying process are de ned for the rough wood.
Thirdly and lastly, the sections are assembled in a precise order, to allow the moisture absorbing capacity of each element to develop over time, settling to achieve soundness, not breakage. That’s why the CNC machines only cut and mill. The rest is time-honoured craftsmanship ...
The Acoustic Doublet
The Acoustic Doublet proprietary theory that was developed for the Academy Sovran project allows even small-scale systems to use speaker/room interferences that will give listeners wave-fronts containing spatial information.
This type of information is linked to the size of the source and length of wave emitted and it’s unlikely to be conveyed to the listener by bookshelf loudspeakers, since a physical distance of at least 1m is needed between sources.
This is one of several reasons why Sovran adopts Reversed Woofer/ Tweeter Alignment, which keeps the woofer as far as possible from the subwoofer and at the same time provides the best angle for modelling the energy response around the second crossover region
HOURGLASS DUCT
Academy Sovran
The pressure that pushes the air inside the reflex duct is extremely high. To view the phenomenon you can exploit the analogy of hydraulic lines that push the water upward. As the salt loses fluid pressure and this in turn reduces the speed, turning a powerful jet and turbulent in a weak jet and silent.
Similarly, to the air in a reflex duct at a high speed of the particles corresponds to a whirling motion, while a low speed of the particles ensures a laminar flow silent. Obviously it is not advisable to reduce excessive air velocity, otherwise it also reduces the power of the acoustic wave emitted, renducing the action of the reflex port.
The theory itself as a maximum value of 130 km/h because they do not occur disturbances worthy of note, suggesting at the same time a duct with a cross section increasing at the ends. In the photograph aside, the view of the integral reflex duct section with Hourglass.
Specifications
Low Frequency Load
- Vented NRS Exponentional Hourglass
Vent Geometry
- Bi-dimensional Hyper-Exponential Hourglass Type
Configuration
- 3-way Reversed Vertical Alignement Free-Standing
Drivers
- 1 Tweeter 32 mm SILVERSOFT™ dome NeFeB motor
- 1 Woofer 170 mm ROHACELL ® Full-Apex Poly-Ring NeFeB motor
- 2 Subwoofer 200 mm Natural Fibres Poly-Ring NeFeB motor
Sensitivity
- 90 dB SPL normalized to 1 m / 2.83 Vrms / decorrelated L/R
- pink noise ITU-R BS 1116-1 compliant listening room
Low Frequency Cut Off
- 35 Hz @ -3dB referred to C4 WETS
Doublet Crossover
- 100 Hz
Mid Hig Crossover
- 1180 Hz / LKR4 Derived (Δf = 45°)
Rated Impedance
- Modulus 4 Ω (min 3.0) Argument ± 36°
Cabinet & Dimensions
Cabinet

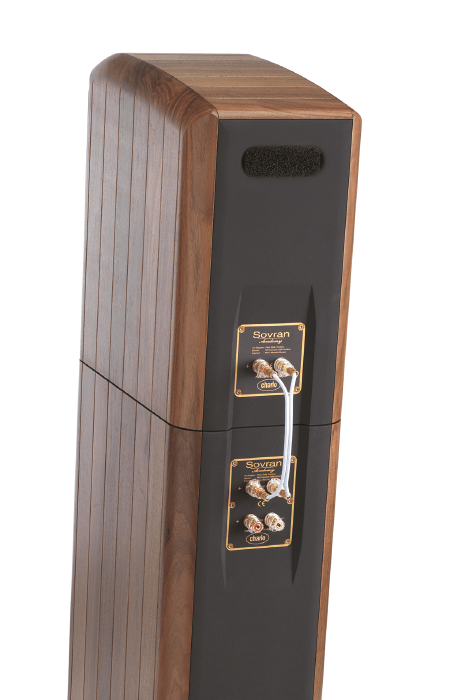

Solid walnut and HDF. The structure comprises two cabinets:the lower contains two subwoofers; the upper contains one woofers, andone tweeter. The two wood cases are separated by fourcylindrical proprietary-engineered elastomeric puffersacting as vibration decouplers to dissipate mechanical energy by orthogonalelongation
Size & Weight
1220 x 240 x 440 mm (H x W x D) / 47 Kg
Acoustic Environment & Amplification
Speakers Orientation
Speakers should be tilted inward facing the listener
Listening Distance
Optimum speaker-listener distance > 3.0 m
Listening Layout
A carpeted floor in front of the speakers is recommended
Side and Back Walls
Should be at least 1m away from the speaker front baffle
Suggested Amplifier
Normal Amping. - 180 W/4Ω Max Average Power
Bi-Amping. - 120 W/4Ω Max Average Power
