Diapason Dynamis Floorstanders Speaker
Diapason Dynamis Floorstanders Speaker
PURE ART
Sophistication, beauty, originality, attention to detail, quality materials and finish make Dynamis an example of Italian manufacturing excellence and craft expertise.
PERFECTLY BALANCED

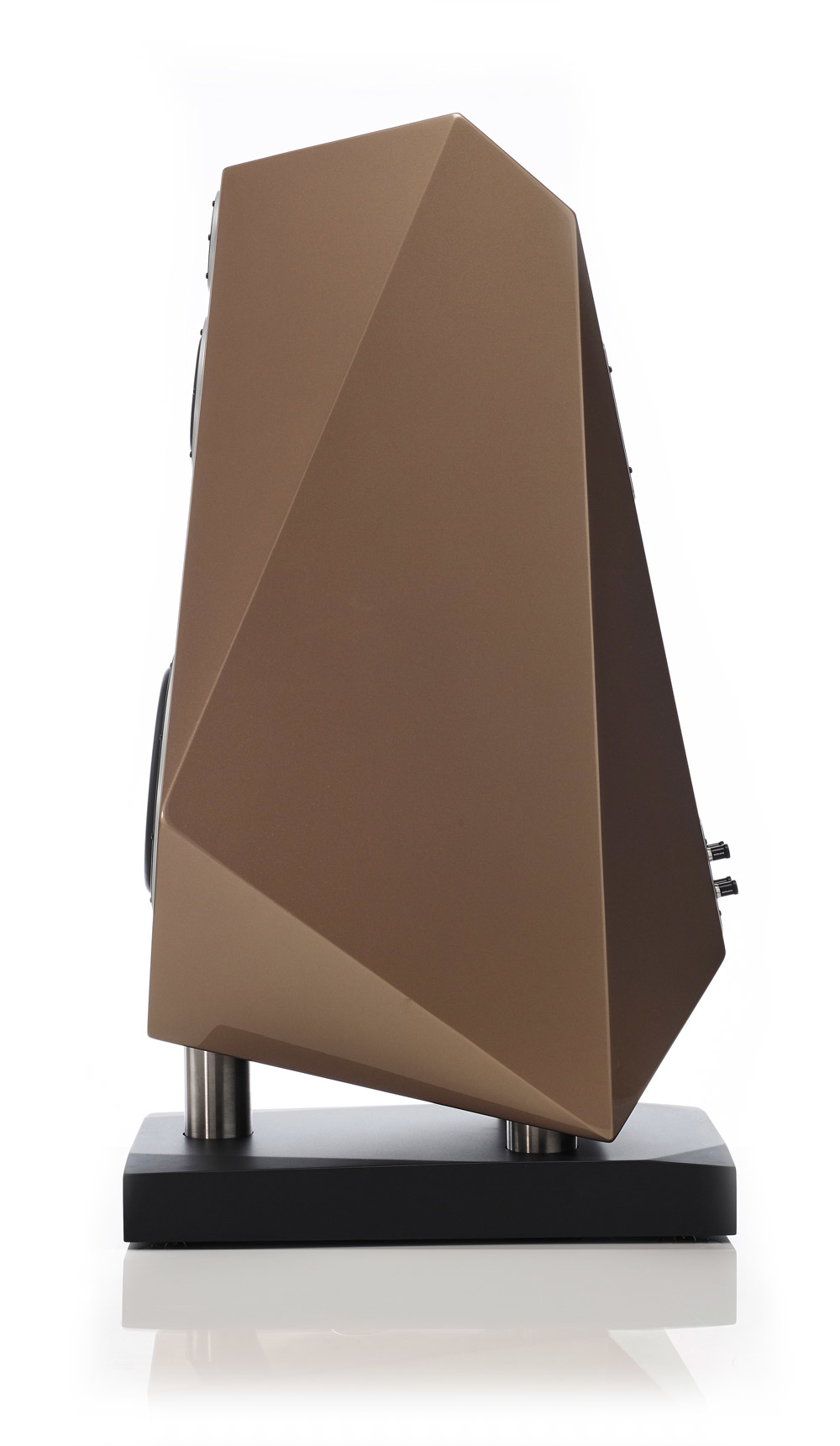

Innovative design solutions such as the functional polygon shape have evolved from the Astera floor standing model, which provided the inspiration for the cabinet's multi-faceted shape.
The 14 sides have proportions designed for tuning the speaker as an acoustic instrument, and are assembled so that only 2 sides are parallel to each other, to reduce internal resonance.
THE THRILL OF LISTENING
Dynamis delivers an uncompromised performance, providing listeners with tone consistency, dynamics, a natural sound and three-dimensionality that lets them shut their eyes and imagine the actual instruments on stage, enjoying a thrilling musical experience.
HANDCRAFTED
The search for perfection is intrinsic in this speaker, and is obvious in the attention given to the smallest detail.
The crossover is made of high-quality components, and has been constructed and wired entirely by hand, preventing the loss or phase rotation and ensuring excellent dynamics under all conditions.
THE COMPONENTS

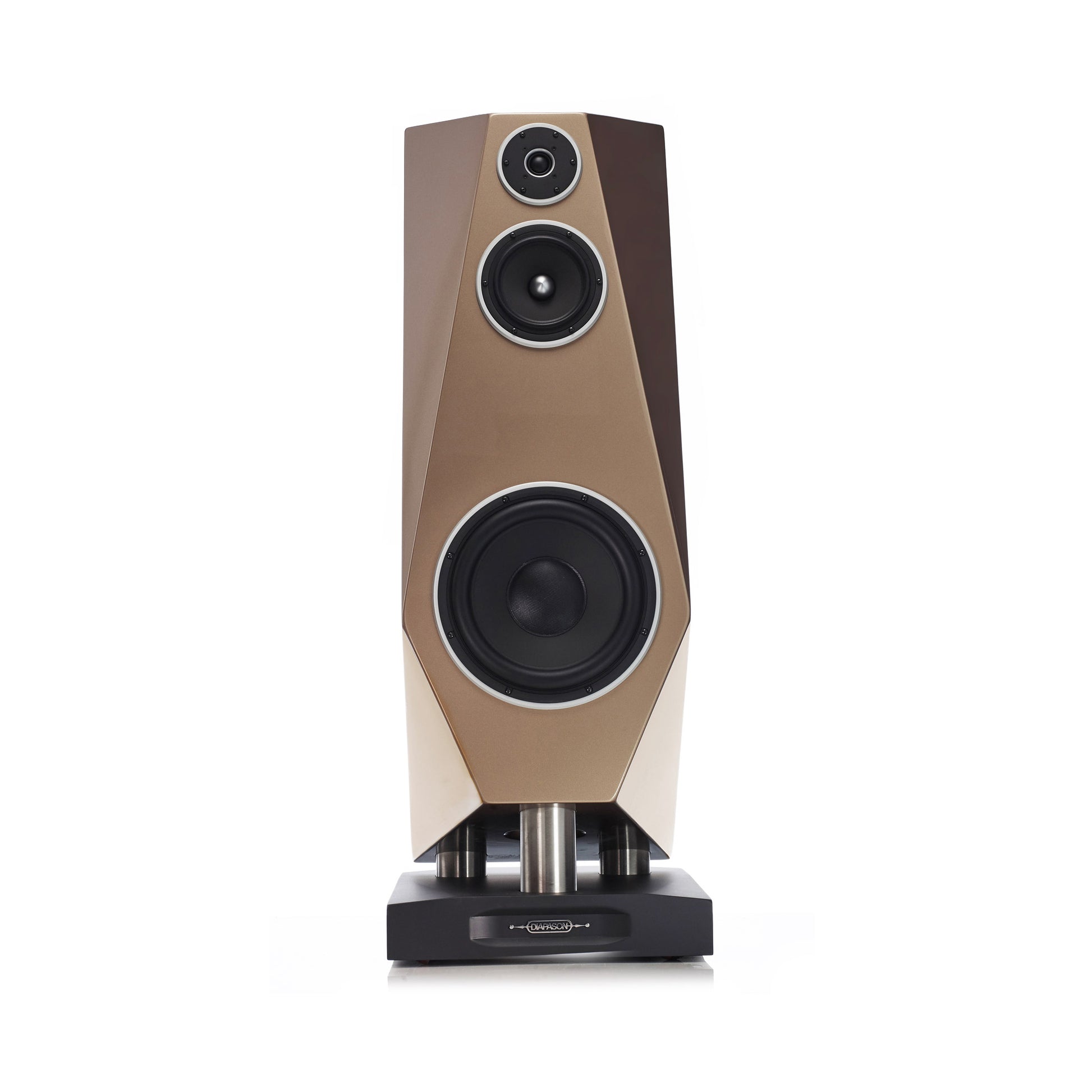

The midrange driver has a well-dimensioned magnetic unit, Nextel-coated paper cone and long-range coil, enabling sound reproduction with very low distortion and an excellent response to transients. The midrange driver is combined with a sophisticated soft silk dome tweeter with ample magnetic flux. The woofer completes the frequency range to provide a solid performance with impressive controlled bass tones.
INNOVATION BLENDING WITH TRADITION
The cabinet is made of High Density Fiberboard using Diapason's tested assembly technology, developed from years of building the Astera, Adamantes and Karis models.
A special GRP layer is applied to make the speaker durable and guarantee improved sound performance. Italian craft experts in luxury finishes give Dynamis the final touches, by applying any colour or material you could possibly desire, to create a striking, original look for any setting.
Tradition and innovation blend harmoniously in the driver technology selected.
CONNECTORS
The sophisticated connectors produced by Diapason ensure perfect contact with any wiring system. The Base is provided with anti-scratch castors to facilitate positioning, in addition to a lower reflex port. The angle of the lower membrane has been designed to enable perfect alignment with the guide units. The drivers are protected individually with a fixed, acoustically transparent grille, which is connected to the speaker using magnets and optimises the beauty of the Dynamis design.
Specifications
24/20.000 Hz (+/- 3 dB)
Tweeter Ø
29 mm silk soft dome
Midrange Ø
18 cm paper cone Nextel coated
Woofer Ø
30 cm Alu cone Fiber glass dust cup
Efficiency
89 dB/W/m
Freq. crossover
150-1.200 Hz
4 Ohm
Min. impedance
3,4 Ohm/200 Hz
Type
reflex
Finish
metallic bronze, glossy white, dark grey, China red, metallic silver or other colour on demand
Weight per speaker
100 Kg
Dimensions
(w x d x h) 450 x 685 x 1275 mm
