Diapason Karis III Loudspeakers

OPERATIC PERFORMANCE

As with an actual musical instrument, Karis III is tuned to reproduce the thrill of live music realistically and naturally.

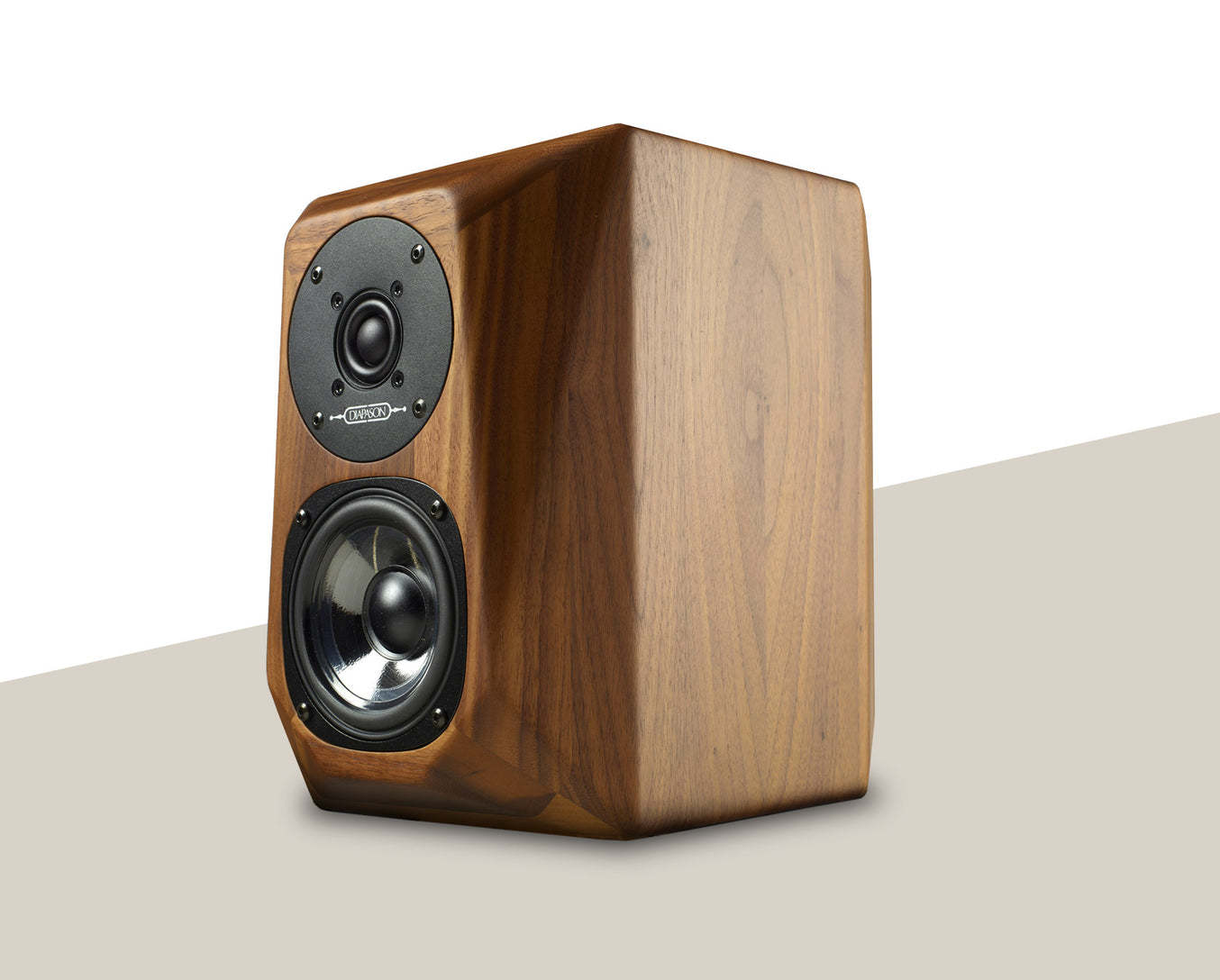

KARIS III

A cabinet made of expertly finished solid Canaletto walnut staves makes the speaker an attractive piece that is wonderful to look at and touch, as well as being crucial for quality sound reproduction.

CONTINUOUS EVOLUTION

Innovative technological solutions improve on the performance levels of previous models. The 11-cm Diapason Direct Drive woofer is capable of excellent performance levels at low frequencies, along with a 19-mm tweeter with ample surround capability to reproduce harmonics perfectly. The crossover circuit with thick PCB is fitted to the rear connectors directly, to make signal transmission from the amplifier to the speaker even faster and more efficient, creating a vivid, three-dimensional and thrilling listening experience.

DEDICATED TECHNOLOGY

Diapason Direct Drive technology applied to the woofer, developed in conjunction with the Norwegian company SEAS according to Diapason specifications, enables direct connection of the rear connectors to the woofer, without using a low-pass circuit. The result is a listening experience that perceives low frequencies reproduced quickly and realistically.

Specs

Frequency response
60/20.000 Hz

Bass Driver Ø
110 mm Direct Drive Polymetylpentene

Tweeter Ø
20 mm silk soft dome

Efficiency
87 dB/1W/1m

Freq. crossover
3.000 Hz

Nominal impedance
8 Ohm

Min. impedance
7,2 Ohm/300 Hz

Type

rear-ported reflex speakerMax rated input voltage
10 V a.c.

Max rated input power RMS
25 W

Max rated dynamic input power
75 W

Finish
Canaletto walnut solid wood, Natural Wood finishing

Weight per speaker
4,5 Kg

Weight per stand
12 Kg

Dimensions speaker
(w x d x h) 190 x 260 x 285 mm

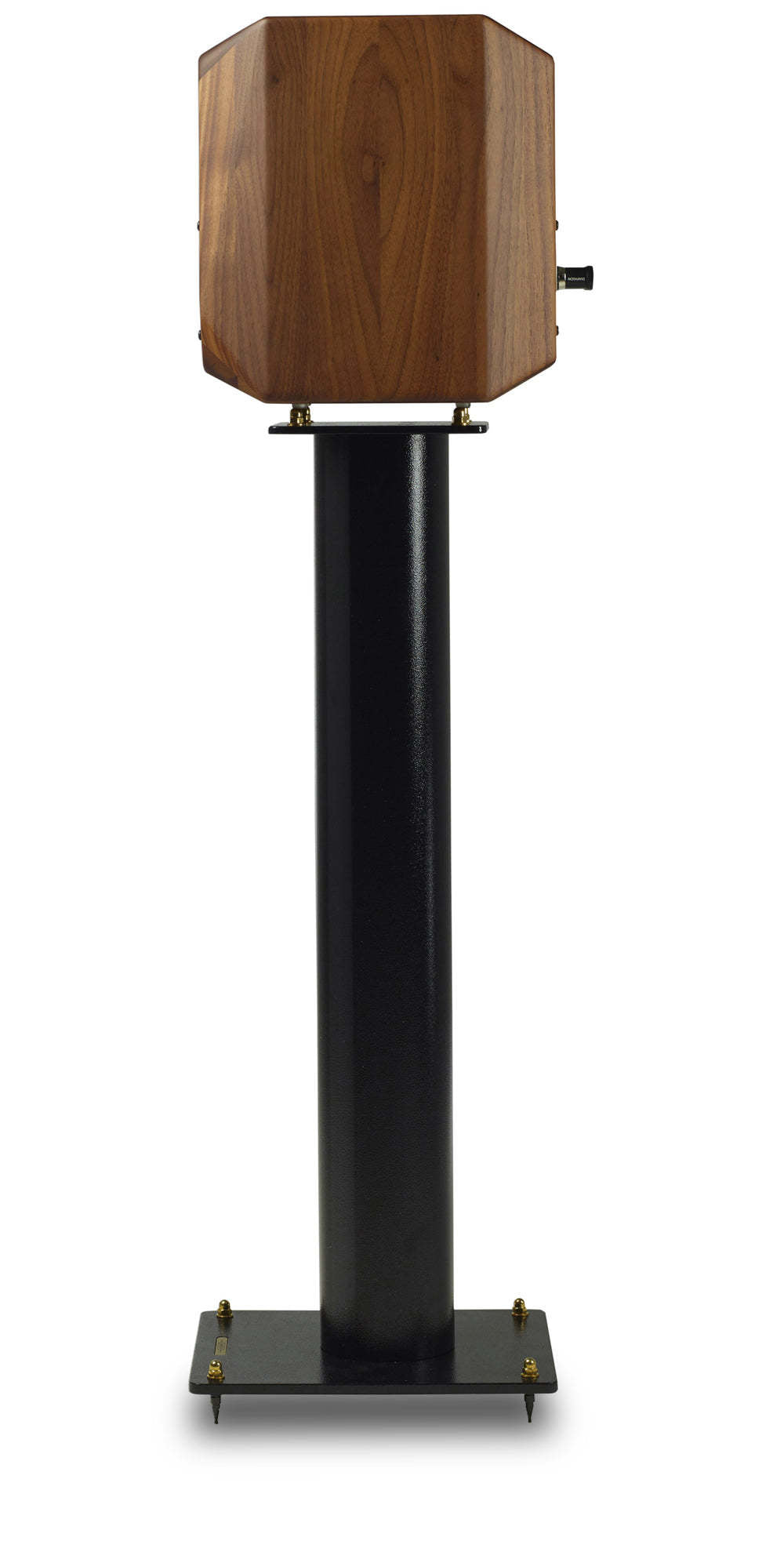

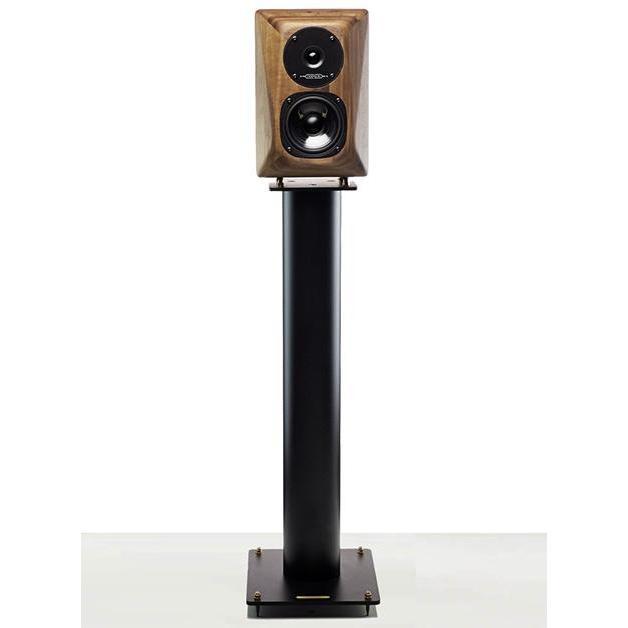

Dimensions speaker with stand
(w x d x h) 260 x 310 x 1110 mm
